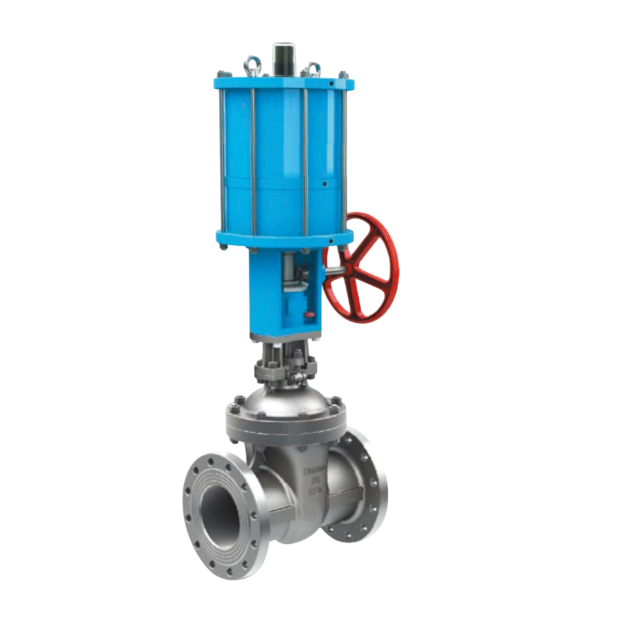

What Is a Pneumatic Gate Valve?

A pneumatic gate valve is a type of industrial valve that uses compressed air (pneumatic actuation) to open or close the flow of fluids in a pipeline. It combines the robust sealing characteristics of traditional gate valves with the efficiency and automation capabilities of pneumatic control systems, making it widely used in modern industrial applications.

Featured Snippet (Quick Answer)

A pneumatic gate valve is an automated valve that uses compressed air to drive a gate (disc) up or down, allowing it to open or close the flow of liquids or gases. It is commonly used in industries requiring remote control, fast operation, and reliable performance.

1. How a Pneumatic Gate Valve Works

The working principle of a pneumatic gate valve is relatively straightforward:

• A pneumatic actuator receives compressed air.
• The actuator converts air pressure into mechanical motion.
• This motion lifts or lowers the internal gate (disc).
• When the gate is lifted → the valve opens and allows flow.
• When the gate is lowered → the valve closes and stops flow.

Unlike manual valves, this process is automated and can be controlled remotely via control systems.

2. Key Components

A pneumatic gate valve consists of the following main parts:

• Valve Body – Houses the internal components and connects to the pipeline
• Gate (Disc) – Moves up and down to open or close flow
• Seat – Provides sealing when the valve is closed
• Stem – Connects the gate to the actuator
• Pneumatic Actuator – Uses compressed air to operate the valve
• Control System – Regulates air supply and valve movement

3. Advantages of Pneumatic Gate Valves

3.1 Reliable Performance

Pneumatic gate valves are known for their reliable performance, especially in demanding environments such as oil & gas, chemical processing, and power plants.

3.2 Fast Operation

Compared to manual gate valves, pneumatic versions can quickly open or close, improving system efficiency.

3.3 Automation Capability

They are ideal for automated systems, reducing the need for manual labor and minimizing human error.

3.4 Tight Sealing

Gate valves provide excellent shut-off capability with minimal leakage.

3.5 Suitable for Large Pipelines

They are commonly used in large-diameter pipelines where manual operation would be difficult.

4. Applications

Pneumatic gate valves are widely used in:

• Oil and gas pipelines
• Chemical processing plants
• Water treatment systems
• Power generation facilities
• Mining and metallurgy industries

These industries require valves that can open or close reliably under high pressure and harsh conditions.

5. Pneumatic Gate Valve vs. Other Valves

6. When to Use a Pneumatic Gate Valve

Choose a pneumatic gate valve when:

• You need automated control
• The system requires frequent open or close operations
• High flow capacity is required
• Reliable performance is critical
• The pipeline diameter is large

7. FAQs

Q1: What is the main function of a pneumatic gate valve?

A: Its main function is to open or close fluid flow using compressed air, ensuring efficient and automated operation.

Q2: What are the advantages of pneumatic over manual gate valves?

A: Pneumatic valves offer faster response, automation, reduced labor, and more reliable performance in industrial systems.

Q3: Can pneumatic gate valves regulate flow?

A: No. Like standard gate valves, they are designed for full open or full close operation, not for throttling.

Q4: What industries commonly use pneumatic gate valves?

A: Industries such as oil & gas, chemical processing, water treatment, and power generation widely use them.

Q5: What is required to operate a pneumatic gate valve?

A: It requires a compressed air supply, a pneumatic actuator, and a control system.

Conclusion

A pneumatic gate valve is an essential component in modern industrial systems, offering automation, durability, and reliable performance. Designed to efficiently open or close fluid flow, it is especially valuable in large-scale and high-demand environments where precision and efficiency are critical.
