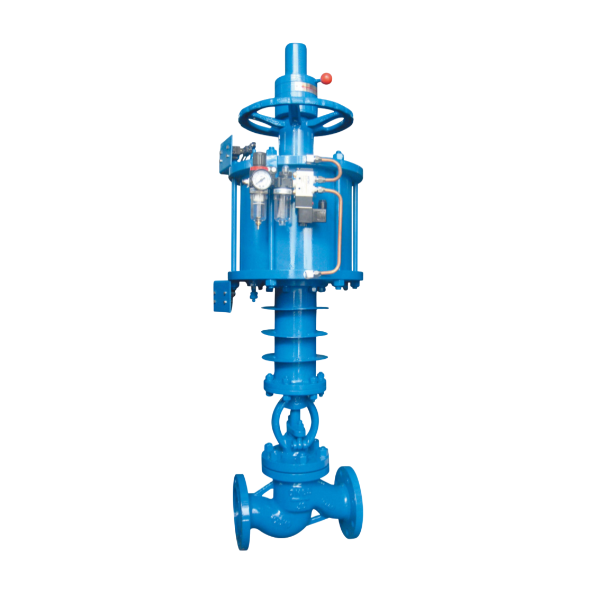

What Is a Pneumatic Globe Valve?

A pneumatic globe valve is a type of control valve that uses compressed air to drive a pneumatic actuator, which precisely regulates the flow of liquids or gases. Unlike simple on/off valves, a globe control valve is specifically designed for throttling and flow control, making it essential in systems that require accurate flow adjustment.

Featured Snippet (Quick Answer)

A pneumatic globe valve is an automated control valve that uses compressed air to operate a pneumatic actuator, allowing precise regulation of fluid flow through a globe-style valve body. It is widely used in industrial systems requiring accurate flow control and reliable performance.

1. How a Pneumatic Globe Valve Works

The working principle of a pneumatic globe valve involves several coordinated components:

• Compressed air is supplied to the pneumatic actuator
• The actuator converts air pressure into linear motion
• The motion moves the valve stem and disc inside the valve body
• The disc adjusts its position relative to the seat
• This enables precise flow regulation, not just open or close

This design makes it ideal for modulating flow rather than simple shut-off.

2. Key Components

A pneumatic globe valve typically consists of:

• Valve Body – The main housing, often made of stainless steel for corrosion resistance
• Disc (Plug) – Controls the flow by moving up and down
• Seat – Ensures tight sealing
• Stem – Connects the actuator to the disc
• Pneumatic Actuator – Drives movement using compressed air
• Positioner (Optional) – Enhances control accuracy

3. Why Stainless Steel Is Commonly Used

Many pneumatic globe valves use stainless steel because:

• It resists corrosion in harsh environments
• It withstands high temperatures and pressure
• It ensures long service life and hygiene (important in food & pharma industries)

4. Advantages of Pneumatic Globe Valves

4.1 Precise Flow Control

A globe control valve provides excellent throttling capability compared to other valve types.

4.2 Automation

With a pneumatic actuator, the valve can be controlled remotely and integrated into automated systems.

4.3 Reliable Performance

Designed for continuous operation, these valves deliver reliable performance in demanding conditions.

4.4 Versatility

Suitable for gases, liquids, and steam across various industries.

5. Applications

A pneumatic globe valve is widely used in:

• Oil and gas processing
• Chemical plants
• Power generation systems
• Water treatment facilities
• Food and pharmaceutical industries

These applications require precise and stable flow control using compressed air systems.

6. Pneumatic Globe Valve vs Other Valves

7. When to Use a Pneumatic Globe Valve

Choose a pneumatic globe valve when:

• Precise flow regulation is required
• Automation is needed
• The system uses compressed air
• A durable stainless steel valve body is preferred
• Stable and reliable performance is critical

8. FAQs

Q1: What is a pneumatic globe valve used for?

A: It is used to regulate and control fluid flow with high precision using a pneumatic actuator powered by compressed air.

Q2: How does a pneumatic globe valve differ from a gate valve?

A: A pneumatic globe valve is designed for flow control, while gate valves are mainly used to open or close flow.

Q3: Why is stainless steel used in pneumatic globe valves?

A: Stainless steel offers corrosion resistance, durability, and suitability for high-pressure and high-temperature environments.

Q4: What is a globe control valve?

A: A globe control valve is a valve designed for precise throttling and flow regulation, often automated with pneumatic or electric actuators.

Q5: What powers a pneumatic globe valve?

A: It is powered by compressed air, which drives the pneumatic actuator to control valve movement.

Conclusion

A pneumatic globe valve is a highly efficient and precise globe control valve that uses compressed air and a pneumatic actuator to regulate flow. With a durable stainless steel valve body and excellent control capability, it is widely used in industries where accuracy and reliable performance are essential.
