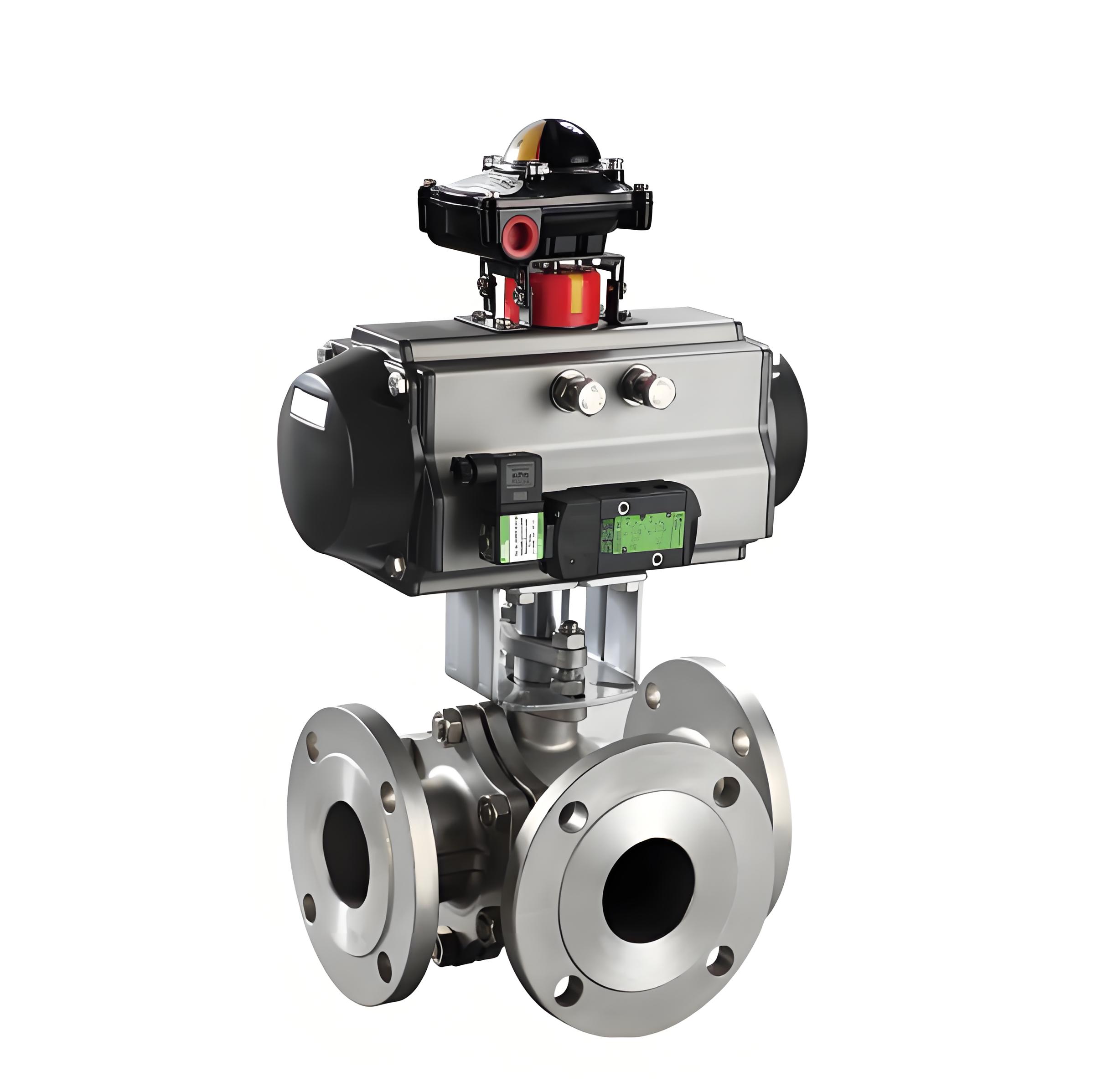

The 3 Way Pneumatic Actuated Ball Valve is a reliable and efficient solution for controlling fluid direction in complex piping systems. Made from durable stainless steel, it offers excellent corrosion resistance and long service life. This valve features multiple flow paths to enable versatile operation. Operated by air actuated ball valves technology with a double acting mechanism, it ensures precise control and fast response under varying air pressure conditions. Ideal for automated industrial applications, the 3-way design provides flexible flow management with dependable performance.
| Design Basis | GB Standard | ANSI Standard |
|---|---|---|
| Design standard | GB/12237 | ANSI B16.34 |
| Connecting Flange Size | GB/9113, JB/T79 | ANSI B16.5 |
| Test & Inspection | JB/T9092 | API 598 |
Note:The structural length and connecting flange size of ball valve series can be designed and manufacured as per users'requirements.
| No. | Name of Parts | Material (C) | Material (P) | Material (R) |
|---|---|---|---|---|
| 1 | Right valve body | WCB | ZG1Cr18Ni9Ti | ZG1Cr18Ni2MoZTi |
| 2 | Nut | 35 | 1Cr18Ni9Ti | 1Cr18Ni9Ti |
| 3 | Gasket | PTFE, Graphite metal composite pad | - | - |
| 4 | Screw | 35 | 1Cr18Ni9Ti | 1Cr18Ni9Ti |
| 5 | Valve body | WCB | ZG1Cr18Ni9Ti | ZG1Cr18Ni2MoZTi |
| 6 | Seat | PTFE, Nylon, PPL, Hard Alloy | - | - |
| 7 | Ball | 1Cr18Ni9Ti | 1Cr18Ni9Ti | 1Cr18Ni12MoZTi |
| 8 | Stem | 1Cr13 | 1Cr18Ni9Ti | 1Cr18Ni12MoZTi |
| 9 | Gasket | 1Cr18Ni9Ti | 1Cr18Ni9Ti | 1Cr18Ni12MoZTi |
| 10 | Packing | PTFE, Flexible Graphite | - | - |
| 11 | Bushing | PTFE composite bearings | - | - |
| 12 | Gland | WCB | ZG1Cr18Ni9Ti | ZG1Cr18Ni2MoZTi |
| 13 | Screw | 35 | 1Cr18Ni9Ti | 1Cr18Ni9Ti |
| 14 | Screw | 35 | 1Cr18Ni9Ti | 1Cr18Ni9Ti |
| 15 | Connecting Yoke | 1Cr18Ni9Ti | 1Cr18Ni9Ti | 1Cr18Ni9Ti |
| 16 | Screw | 35 | 1Cr18Ni9Ti | 1Cr18Ni9Ti |
| 17 | Connecting Set | 1Cr18Ni9Ti | 1Cr18Ni9Ti | 1Cr18Ni9Ti |
| 18 | Pneumatic Device | AT Series, AW Series | - | - |
| 19 | Location Indicator | Plastic | - | - |
Note: The main components and sealing rings of the series ball valves can be designed and selected according to actual working conditions or special user requirements.

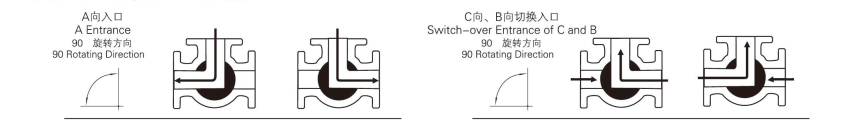

Three-way ball valve is used for diffluence or confluent circulation with two-side or four-side valve base embodying multiple channels. All The channels can be used as entrance, with no leakage. The three-way can be made to L-shaped channel or T-shaped channel.
